PORTABLE
SAND
BLASTING
MACHINE.
Metaflux Spray Solutions manufactures portable sand blasting machines in Pimpri-Chinchwad, Pune, for on-site surface preparation of ships, bridges, storage tanks and offshore structures.

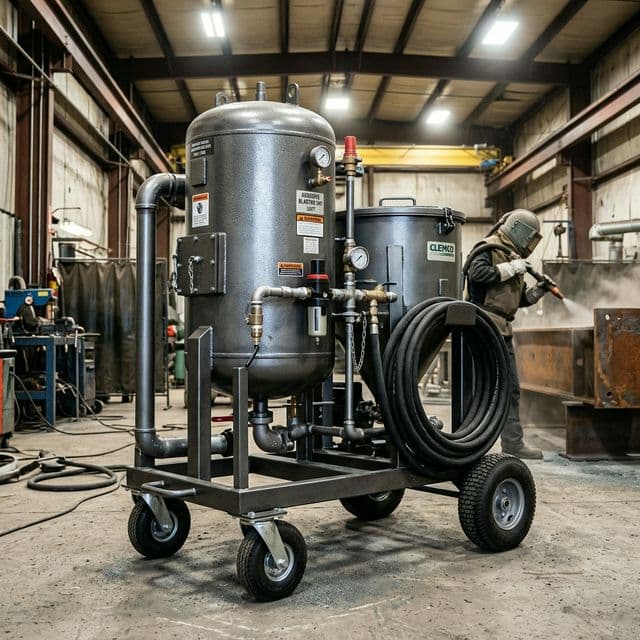

Trolley mounted blast pots from 100 to 800 litres, with pneumatic dead man control, inline moisture separator and up to 40 metres of blast hose so the pot stays put while the operator moves.
High Pressure Portable Sand Blasting Machine
"Built to survive salt-air site conditions and hold a steady 7 bar (100 PSI) at the nozzle through a full shift of grit blasting."
TYPICAL SPECIFICATIONS.
Vessel size follows how long you want to blast between refills; nozzle bore follows the compressor you have on site. Tell us both and we will confirm the model before quoting.
| Parameter | Typical Range |
|---|---|
| Pressure vessel capacity | 100, 200, 300, 500 or 800 litres |
| Abrasive charge per fill | Approx. 150 kg (100 L) to 1,200 kg (800 L) of chilled iron grit |
| Empty weight | Approx. 90 kg (100 L) to 600 kg (800 L), trolley mounted |
| Working pressure | Up to 7 bar (100 PSI), regulated down to 2 bar for light work |
| Nozzle bore | 6, 8, 10 or 12 mm long venturi tungsten carbide |
| Air consumption | 90 CFM at 6 mm / 7 bar, rising to about 400 CFM at 12 mm / 7 bar |
| Blast hose | 10 m standard, extendable to 40 m; 32 mm or 38 mm bore, antistatic |
| Remote control | Pneumatic dead man handle, fail safe shut off on release |
| Air treatment | Inline moisture separator and air filter for the operator air line |
| Mobility | Solid rubber wheels on a towable trolley, or skid base for forklift handling |
| Operator kit | Air fed helmet, breathing air filter, blast suit and gloves |
Indicative ranges across the standard build. Exact specifications vary by configuration and are confirmed on the approved general arrangement drawing for your order.
Frequently Asked Questions.
Direct answers on blast pot sizing, compressor requirements, dead man safety control and on-site surface preparation.
What is a portable sand blasting machine used for?
A portable sand blasting machine, or blast pot, is a wheeled pressure vessel that takes abrasive blasting to a structure that cannot be brought into a workshop. Typical duties are shipyard hull and deck work, bridge and gantry steelwork, storage tank exteriors and interiors, offshore platforms and plant maintenance. Metaflux Spray Solutions manufactures blast pots from 100 to 800 litres in Pimpri-Chinchwad, Pune, with up to 40 metres of blast hose so the pot stays put while the operator moves around the job.
What size portable blast pot is needed?
Vessel size is chosen by how long the operator needs to blast between refills, not by the area of the job. A 100 litre pot holds roughly 150 kg of chilled iron grit and a 800 litre pot roughly 1,200 kg, so a large vessel simply means fewer interruptions on a long shift. Weight and handling then set the practical limit: an empty 100 litre pot is around 90 kg and an 800 litre pot around 600 kg, which needs a forklift or a towable trolley on site.
What compressor does a portable blaster need?
Air consumption follows the nozzle bore: about 90 CFM at a 6 mm bore, 160 CFM at 8 mm, 250 CFM at 10 mm and 400 CFM at 12 mm, all at 7 bar. Site work is normally run from a diesel screw compressor sized with headroom, because pressure at the nozzle — not pot size — decides the cleaning rate. An inline moisture separator and air filter are essential, since wet air on a humid or coastal site will clog the abrasive and flash-rust the freshly blasted steel.
What is a dead man control on a blast pot?
A dead man control is a pneumatic handle at the nozzle that must be held closed for blasting to continue, so releasing it — or dropping the hose — shuts the machine down immediately. It is the primary safety fitment on a portable blaster, because an unattended pressurised blast hose whipping under 7 bar is one of the most serious hazards in site blasting. Every Metaflux portable blast pot is supplied with a fail-safe pneumatic dead man remote control as standard.
Can a portable blaster prepare steel for metallizing on site?
Yes — site metallizing of bridges, towers and tanks is normally prepared with a portable blast pot running angular chilled iron grit or aluminium oxide. ISO 2063 asks for Sa 3 cleanliness with a 60 to 100 micron angular anchor profile, and the zinc or aluminium must be sprayed before rust bloom forms, which in humid conditions means within hours. Metaflux Spray Solutions manufactures both the blast pot and the wire flame spray and arc spray equipment used for that work.
Request a Site Quote.
Give us the vessel capacity, the nozzle bore and the site location. We will quote the pot, hose and operator kit as one package.
